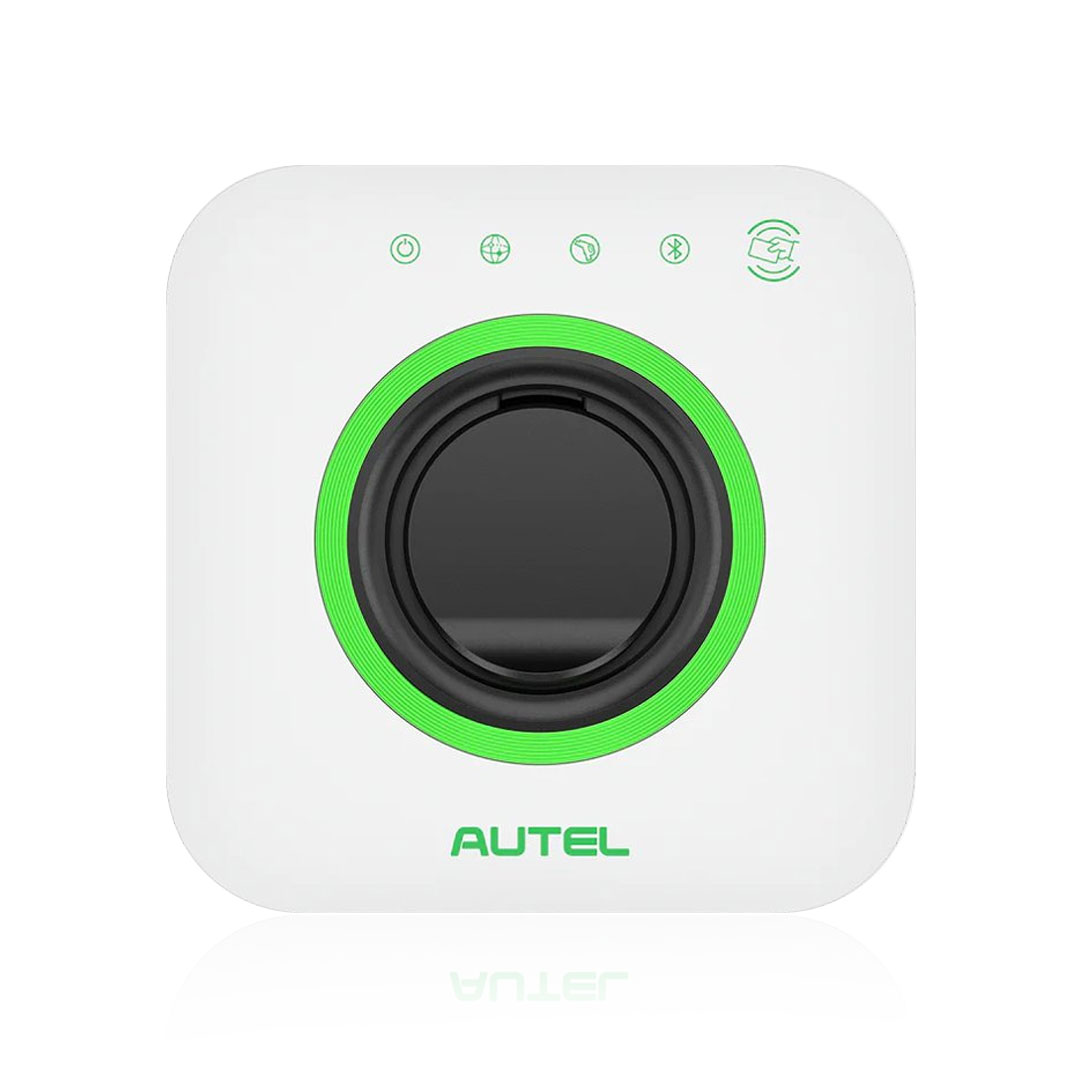

Autel MaxiCharger AC Compact 22kW-WH-Socket

کد کالا : 415060
company image

Autel

  • input voltage

    230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)

  • Power

    Single phase up to 7.4kW/32A; Three phase up to 22kW/32A

  • Mounting

    Wall or floor standing using a pedestal

  • interface

    Autel Charge APP; Autel Charge Cloud
ارسال سریعارسال رایگان
021 66 48 19 08 تماس بگیرید برای اطلاع از قیمت
12ماه ها گارانتی
570 تومان
تومان 598.5
تتر
The Autel MaxiCharger AC Wallbox 11KW AC W11-C5-DG is a high-capacity electric vehicle charging station designed to provide efficient, safe, and fast charging. It features a robust design suitable for both indoor and outdoor use, equipped with advanced safety and connectivity features including app control, Wi-Fi, and RFID user authentication. It's built to withstand various environmental conditions, ensuring durability and reliability in charging electric vehicles.

  • Charging mode:

    Mode 3

  • Connector type:

    IEC 62196 type 2 normal socket

  • input voltage:

    230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)

  • Residual current detection:

    AC 30mA + DC 6mA

  • Power measurement accuracy:

    +/- 2.0%

  • Power:

    Single phase up to 7.4kW/32A; Three phase up to 22kW/32A

  • IP rating:

    IP54

  • Protection against:

    Overcurrent, overvoltage, undervoltage, integrated surge protection

  • Safety standards:

    IEC 61851-1, EN 50663, EN 50665, IEC/EN62955, CE (TÜV)

  • Operating altitude:

    2,000 m

  • Operating temperature range:

    -30℃~+50℃

  • Storage temperature range:

    -40℃~+70℃

  • Weight:

    750 g

  • Mounting:

    Wall or floor standing using a pedestal

  • Dimensions:

    202 × 202 × 115 mm

  • display:

    LED/APP

  • interface:

    Autel Charge APP; Autel Charge Cloud

  • Connectivity:

    Bluetooth, Wi-Fi, Ethernet, RS485, 4G, Modbus TCP/IP

  • Communication protocols:

    OCPP 1.6J

  • User authentication:

    APP, AutoStart, RFID card

  • Software update:

    OTA updates via web portal
